The Large Hadron Collider (LHC) is a particle accelerator of the European Organization for Nuclear Research (CERN) that lies under the Franco-Swiss border near Geneva, Switzerland. The LHC is in the final stages of construction and commissioning, with some sections already being cooled down to their final operating temperature of approximately 2K. The first beams are due for injection mid June 2008 with the first collisions planned to take place 2 months later. The LHC will become the world's largest and highest-energy particle accelerator. The LHC is being funded and built in collaboration with over two thousand physicists from thirty-four countries as well as hundreds of universities and laboratories.

When activated, it is theorized that the collider will produce the elusive Higgs boson, the observation of which could confirm the predictions and "missing links" in the Standard Model of physics and could explain how other elementary particles acquire properties such as mass. The verification of the existence of the Higgs boson would be a significant step in the search for a Grand Unified Theory, which seeks to unify three of the four known fundamental forces: electromagnetism, the strong nuclear force and the weak nuclear force, leaving out only gravity. The Higgs boson may also help to explain why gravitation is so weak compared to the other three forces. In addition to the Higgs boson, other theorized novel particles that might be produced, and for which searches are planned, include strangelets, micro black holes, magnetic monopoles and supersymmetric particles.

Technical Design

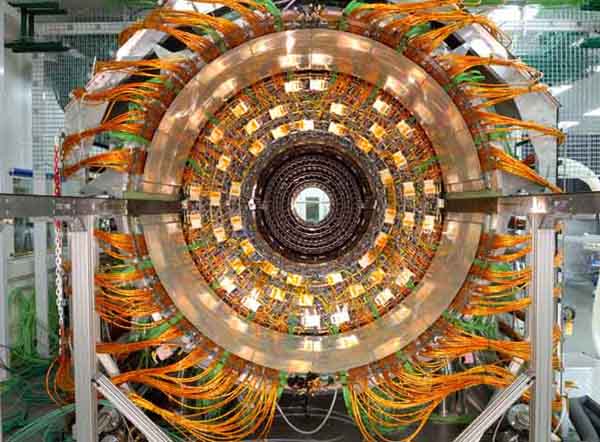

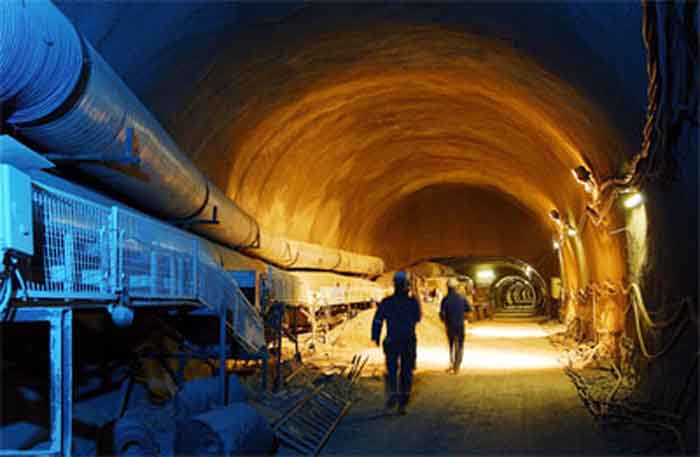

The collider is contained in a circular tunnel with a circumference of 27 kilometres (17 mi) at a depth ranging from 50 to 175 metres underground. The tunnel, constructed between 1983 and 1988, was formerly used to house the LEP, an electron-positron collider.

The 3.8 metre diameter, concrete-lined tunnel crosses the border between Switzerland and France at four points, although most of its length is inside France. The collider itself is underground, with surface buildings holding ancillary equipment such as compressors, ventilation equipment, control electronics and refrigeration plants.

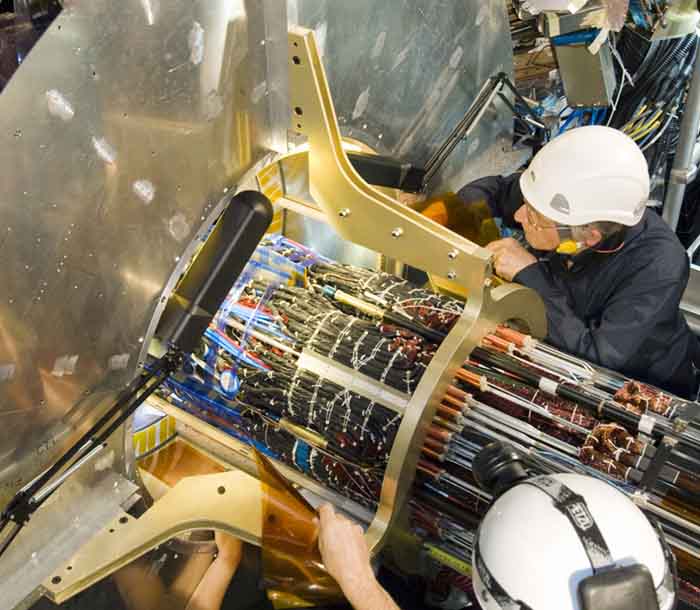

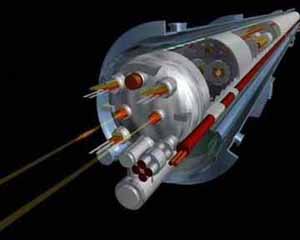

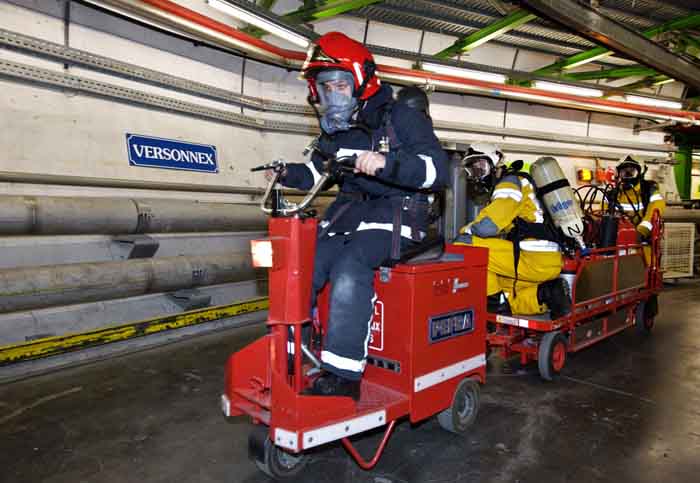

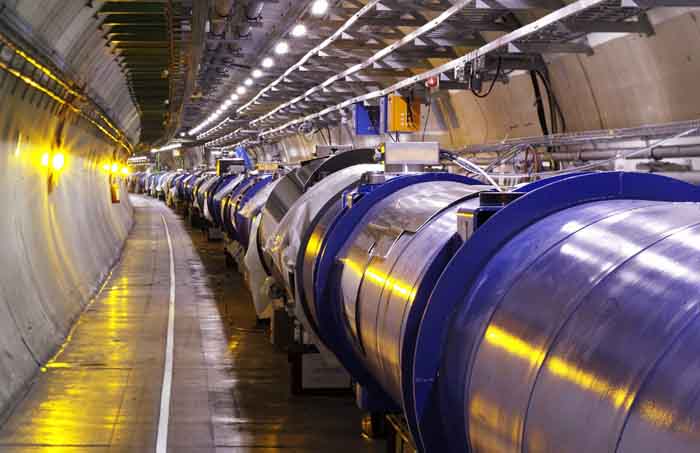

The collider tunnel contains two pipes, each pipe containing a beam. The two beams travel in opposite directions around the ring. 1232 dipole magnets keep the beams on their circular path, while additional 392 quadrupole magnets are used to keep the beams focused, in order to maximize the chances of interaction between the particles in the four intersection points, where the two beams will cross. In total, over 1600 superconducting magnets are installed, with most weighing over 27 tonnes. 96 tonnes of liquid helium is needed to keep the magnets at the operating temperature.

The protons will each have an energy of 7 TeV, giving a total collision energy of 14 TeV. It will take less than 90 microseconds for an individual proton to travel once around the collider. Rather than continuous beams, the protons will be "bunched" together, into 2,808 bunches, so that interactions between the two beams will take place at discrete intervals never shorter than 25 ns apart. When the collider is first commissioned, it will be operated with fewer bunches, to give a bunch crossing interval of 75 ns. The number of bunches will later be increased to give a final bunch crossing interval of 25 ns.

Prior to being injected into the main accelerator, the particles are prepared through a series of systems that successively increase the particle energy levels. The first system is the linear accelerator Linac 2 generating 50 MeV protons which feeds the Proton Synchrotron Booster (PSB). Protons are then injected at 1.4 GeV into the Proton Synchrotron (PS) at 26 GeV. Finally the Super Proton Synchrotron (SPS) is used to increase the energy of protons up to 450 GeV.

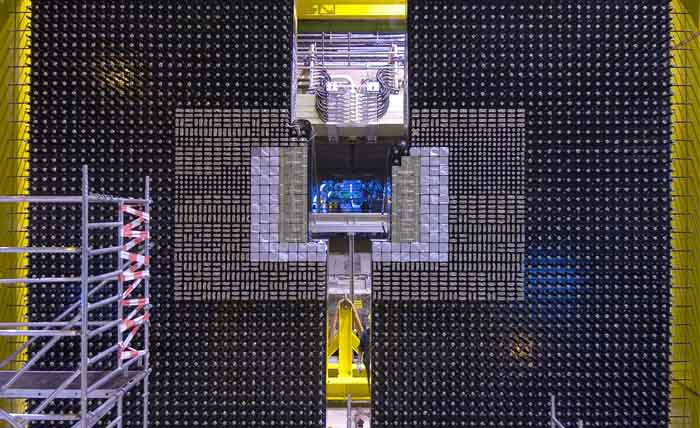

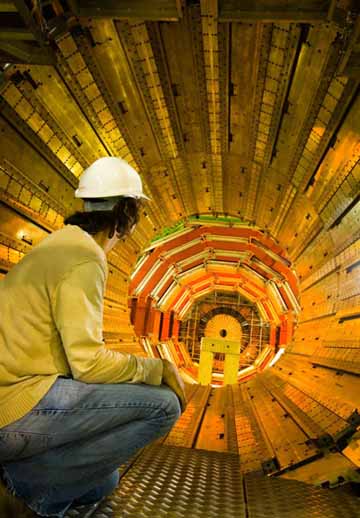

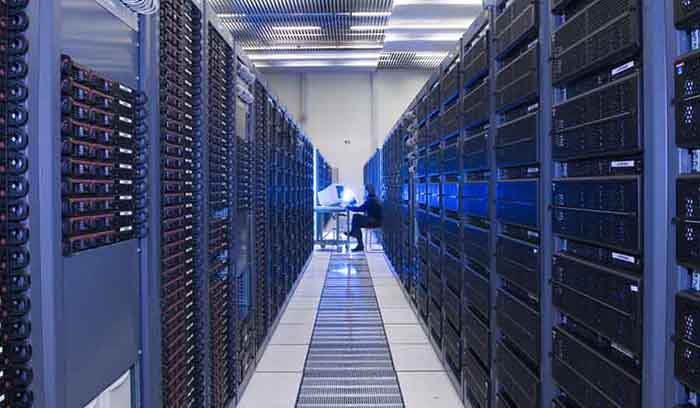

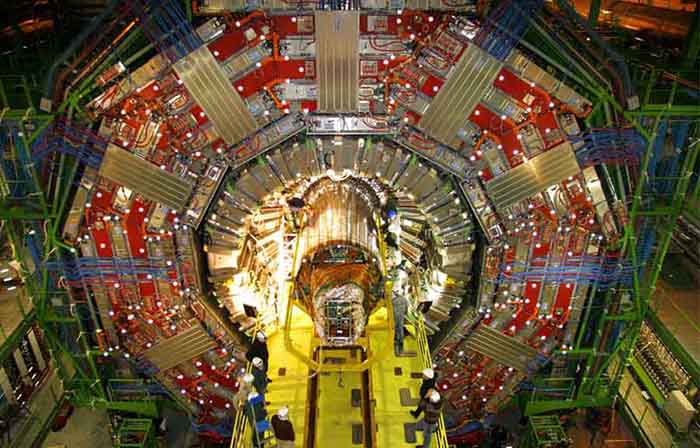

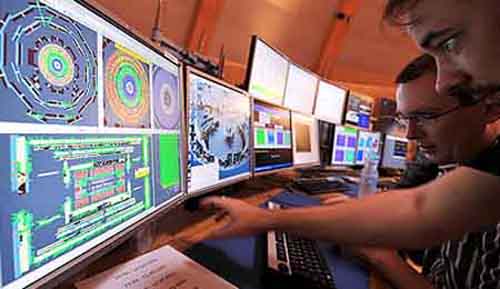

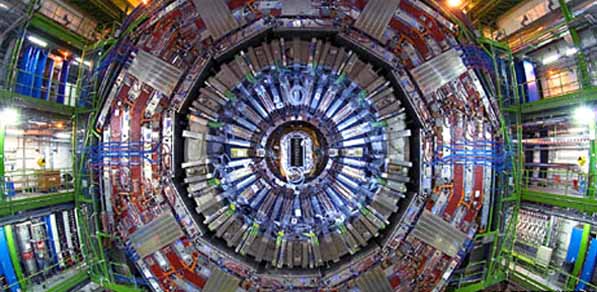

The LHC will also be used to collide lead (Pb) heavy ions with a collision energy of 1,150 TeV. The ions will be first accelerated by the linear accelerator Linac 3, and the Low-Energy Injector Ring (LEIR) will be used as an ion storage and cooler unit. The ions then will be further accelerated by the Proton Synchrotron (PS) and Super Proton Synchrotron (SPS) before being injected into LHC ring, where they will reach an energy of 2.76 TeV per nucleon. Six detectors are being constructed at the LHC, located underground in large caverns excavated at the LHC's intersection points. Two of them, ATLAS and CMS, are large, "general purpose" particle detectors.

ALICE is a large detector designed to study the properties of quark-gluon plasma looking at the debris of heavy ion collisions. The other three (LHCb, TOTEM, and LHCf) are relatively smaller and more specialized. A seventh experiment, FP420 (Forward Physics at 420m), has been proposed which would add detectors to four available spaces located 420m on either side of the ATLAS and CMS detectors.

The size of the LHC constitutes an exceptional engineering challenge with unique safety issues. While running, the total energy stored in the magnets is 10 GJ, while each of the two beams carries an overall energy of 362 MJ. For comparison, 362 MJ is the kinetic energy of a TGV running at 157 km/h (98 mph), while 724 MJ, the total energy of the two beams, is equivalent to the detonation energy of approximately 173 kilograms (380 lb) of TNT, and 10 GJ is about 2.4 tons of TNT. Loss of only 10-7 of the beam is sufficient to quench a superconducting magnet, while the beam dump must absorb an energy equivalent to a typical air-dropped bomb.

These immense kinetic energies become far more spectacular when you consider how little matter is carrying it. At its maximum energy rating (2.76TeV per particle with a total of 362MJ), there is just 1.15E-9 grams of hydrogen in the system (or 0.026 of one cubic millimeter).

Research

When in operation, about seven thousand scientists from eighty countries will have access to the LHC, the largest national contingent of seven hundred being from the United States. Physicists hope to use the collider to test various grand unified theories and enhance their ability to answer the following questions:

Is the popular Higgs mechanism for generating elementary particle masses in the Standard Model realised in nature? If so, how many Higgs bosons are there, and what are their masses?
Will the more precise measurements of the masses of the quarks continue to be mutually consistent within the Standard Model?
Do particles have supersymmetric ("SUSY") partners?
Why are there apparent violations of the symmetry between matter and antimatter?
Are there extra dimensions indicated by theoretical gravitons, as predicted by various models inspired by string theory, and can we "see" them?
What is the nature of dark matter and dark energy?
Why is gravity so many orders of magnitude weaker than the other three fundamental forces?

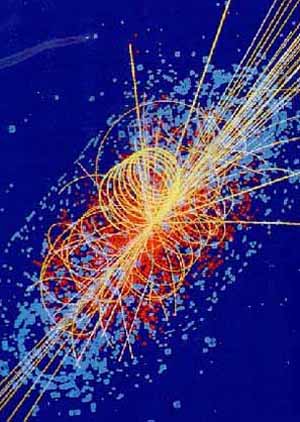

A simulated event in the CMS detector,

featuring the appearance of the Higgs boson.

Proton-Proton Collisions at the LHC

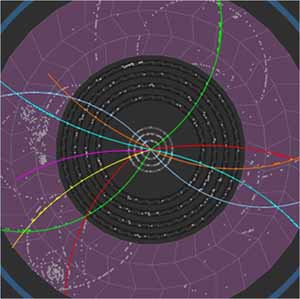

Computer reconstruction of particle tracks, originating
from the simulated decay of a Higgs boson.

LHC as an ion collider

The LHC physics program is mainly based on proton-proton collisions. However, shorter running periods, typically one month per year, with heavy-ion collisions are included in the programme. While lighter ions are considered as well, the baseline scheme deals with lead (Pb) ions. This will allow an advancement in the experimental programme currently in progress at the Relativistic Heavy Ion Collider (RHIC).

Proposed Upgrade

After some years of running, any particle physics experiment typically begins to suffer from diminishing returns; each additional year of operation discovers less than the year before. The way around the diminishing returns is to upgrade the experiment, either in energy or in luminosity.

A luminosity upgrade of the LHC, called the Super LHC, has been proposed, to be made after ten years of LHC operation. The optimal path for the LHC luminosity upgrade includes an increase in the beam current (i.e., the number of protons in the beams) and the modification of the two high luminosity interaction regions, ATLAS and CMS. To achieve these increases, the energy of the beams at the point that they are injected into the (Super) LHC should also be increased to 1 TeV. This will require an upgrade of the full pre-injector system, the needed changes in the Super Proton Synchrotron being the most expensive.

Micro black holes

Although the Standard Model of particle physics predicts that LHC energies are far too low to create black holes, some extensions of the Standard Model posit the existence of extra spatial dimensions, in which it would be possible to create micro black holes at the LHC at a rate on the order of one per second. According to the standard calculations these are harmless because they would quickly decay by Hawking radiation. The concern is that among other disputed factors, Hawking radiation (the existence of which is still debated) is not yet an experimentally-tested or naturally observed phenomenon.

The opponents to the LHC consider that micro black holes produced in a terrestrial laboratory might not decay as rapidly as calculated, or might even not be prone to decay. According to CERN, physicists in general do not question the assumption that black holes are generally unstable and those few who have pointed out issues with Steven Hawking's radiation were only attempting to achieve a more rigorous proof of it.[30] "No-one ever claimed that his proof of the decay is wrong, and that therefore they should be stable." CERN further argues that even if micro black holes were created and were stable, they would pose no reasonable threat to the Earth during its remaining 5 billion years of existence. However, Dr. Adam D. Helfer's thesis concludes "no compelling theoretical case for or against radiation by black holes", and Dr. Otto E. Rossler's thesis calculates that Earth accretion time could be as short as 50 months.

Strangelet

A strangelet or "strange nugget" is a hypothetical object consisting of a bound state of roughly equal numbers of up, down, and strange quarks. The size could be anything from a few femtometers across (with the mass of a light nucleus) to something much larger. Once the size becomes macroscopic (on the order of meters across), such an object is usually called a quark star or "strange star" rather than a strangelet. An equivalent description is that a strangelet is a small fragment of strange matter. The term "strangelet" originates with E. Farhi and R. Jaffe. Strangelets have been suggested as a dark matter candidate.
